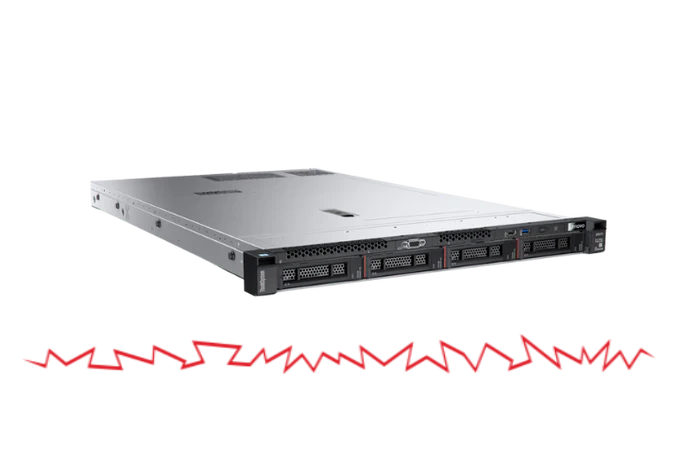

Lenovo ThinkSystem SR570 Rackmount Server

Alta Technologies buys & sells new, used, and refurbished Lenovo ThinkSystem SR570 Servers and upgrades. Whether you need a fully configured server or simply require a feature or part, we specialize in Used Lenovo ThinkServer hardware.

With over 25 years of experience, Alta Technologies is the leading Lenovo server reseller in the area. We also buy your excess Lenovo server and storage equipment.

Contact us about complete systems or parts for the Lenovo ThinkSystem SR570 Rackmount Server (to buy or sell)

SR570 Information

The Lenovo ThinkSystem SR570 is a 2-socket 1U rack server designed for small to big organizations that require industry-leading reliability, management, and security, as well as a balance of performance, memory, and customizable storage configurations. The SR570 server features the Intel Xeon Processor Scalable Family's second generation (Xeon SP Gen 2), which provides balanced performance and storage capacity. The SR570 server supports up to two processors, up to 2933 MHz memory speed, up to 1 TB of memory capacity with TruDDR4 RDIMMs or up to 2.75 TB of memory capacity with a combination of TruDDR4 RDIMMs and Intel DC persistent memory modules (DCPMMs), up to 10x 2.5-inch or 4x 3.5-inch drive bays with an extensive selection of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot and up to 3x PCIe slots.

Request a Quote Today

Lenovo SR570 Specifications

Form factor: 1U rack-mount

Chipset: Intel C622

Memory: there are up to 16 DIMM sockets available (8 DIMMs per processor; 6 memory channels per processor with one DIMM per channel for four channels and two DIMMs per channel for two channels). RDIMMs and LRDIMMs are supported. Memory types can't be mixed together. Depending on the CPU, memory speeds can reach 2933 MHz.

Ports: front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port. Optional 1x VGA port, rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port

Network interfaces: 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support), onboard LOM slot for up to 4x 1/10 Gb Ethernet ports: 2x 1 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE SFP+ ports (no 10/100 Mb support), optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors, 1x RJ-45 10/100/1000 Mb Ethernet systems management port.

Power Supply: Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only)

Dimensions: Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.)

Weight: minimum configuration: 10.2 kg (22.5 lb), maximum: 16.0 kg (35.3 lb)

Request a Quote Today
