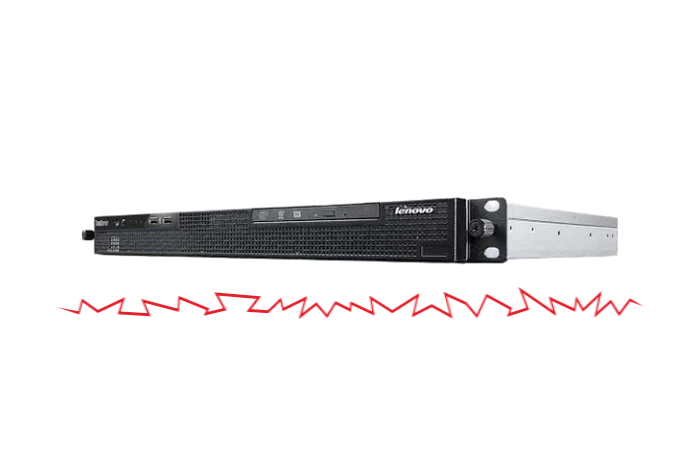

Lenovo RS140 Specifications
Form factor: 1U rack-mount
Processor: One Intel Xeon processor E3-1200 v3 product family with four cores up to 3.7 GHz, 8 MB cache, and up to 1600 MHz memory speed; or One Intel Core-i3 Processor 4100/4300 product families with two cores up to 3.7 GHz, up to 4 MB cache, and 1600 MHz memory speed; or One Intel Pentium Processor G3200/G3400 product families with two cores up to 3.4 GHz, 3 MB cache, and up to 1600 MHz memory speed; or One Intel Celeron Processor G1800 product family with two cores up to 2.9 GHz, 2 MB cache, and up to 1333 MHz memory speed.
Chipset: Intel C226
Memory: Four DIMM sockets. Support for UDIMMs. DIMM speeds up to 1600 MHz.
Maximum internal storage: Up to 3.6 TB with 900 GB 2.5-inch SAS HDDs; up to 4 TB with 1 TB 2.5-inch NL SAS/SATA HDDs; up to 2.4 TB with 600 GB 2.5-inch SATA SSDs; or up to 12 TB with 6 TB 3.5-inch NL SATA HDDs.
Power supply: One fixed 300 W AC power supply (80 PLUS Gold certification).
Drive bays: Four 2.5-inch non-hot-swap SAS/SATA drive bays; or two 3.5-inch SAS/SATA non-hot-swap drive bays
Dimensions: Height: 43 mm (1.7 in.), width: 430 mm (16.9 in.), depth: 411 mm (16.2 in.)
Weight: Minimum: 7.4 kg (16.3 lb), maximum: 9.0 kg (19.8 lb)
