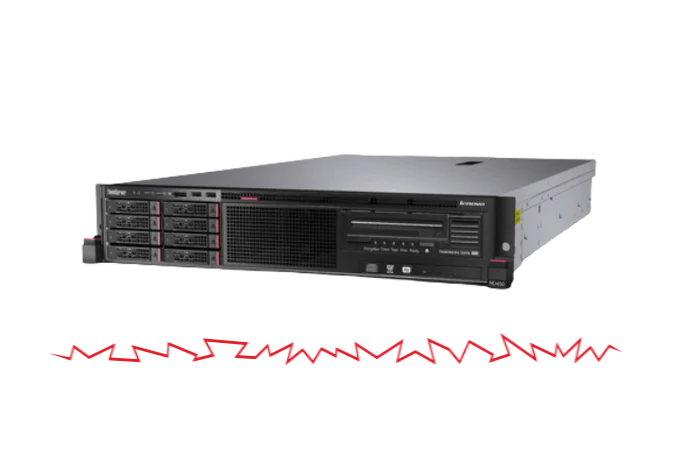

Lenovo RD450 Specifications
Chipset: Intel C610 Series
Form factor: 2U rack
Processor: Up to two Intel Xeon E5-2600 v4 Series CPUs, with up to 105 W SKUs and up to 14 cores per CPU
Memory: Up to 16 DDR4 DIMM sockets (8 DIMMs per processor). RDIMMs and Load Reduced DIMMs (LRDIMMs) are supported. Memory types cannot be intermixed. Memory speed up to 2400 MHz
Disk drive bays: up to 24x 2.5" hot-swap SAS/SATA HDDs/SSDs, or up to 8x 3.5" hot-swap SAS/SATA HDDs/SSDs, or up to 8x 2.5" easy-swap SAS/SATA HDDs
Network Interfaces: Two integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (Intel i210) for the operating system, Port 1 can be configured as shared with systems management.
Ports: Front: 2x USB 2.0 and 1x VGA port, Rear: 2x USB 3.0, 1x DB-15 VGA video, 1x RJ-45 systems management, 2x RJ-45 GbE network ports, 1x DB-9 serial port, Internal: 2x SD Card slots (supporting SDHC cards; for embedded hypervisor)
Weight: Minimum configuration: 16 kg (35.3 lb), maximum: 27 kg (59.5 lb)
