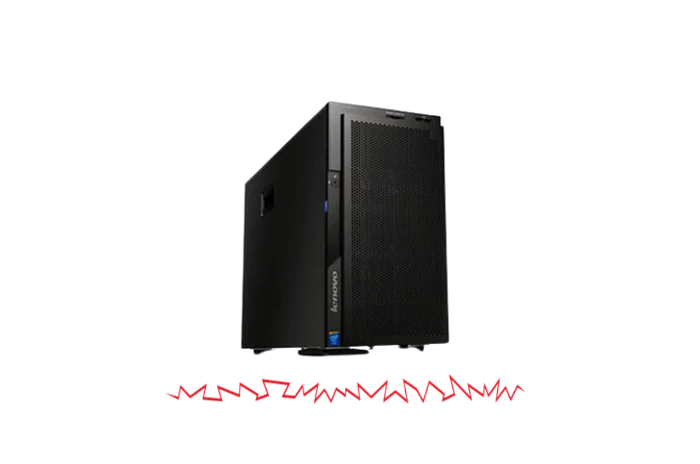

Lenovo System x3500 M5 Tower Server

Alta Technologies buys & sells new, used, and refurbished Lenovo System X3500 M5 System X servers and upgrades. Whether you need a fully configured system or simply require a feature or part, we carry a broad array of Used IBM/Lenovo System X Intel-based server hardware.

With over 1.5 million products IN STOCK, Alta Technologies is one of the leading Lenovo ThinkSystem resellers in the area. We also buy your excess Lenovo equipment.

Customer-Focused IT Hardware

Since 1995, we've poured all of our efforts into delivering products that match our client's expectations and exceeds their price savings target.

With our huge inventory and industry-leading engineers, customers tell us they trust Alta for our reliability, custom configurations, parts responsiveness, lightning fast delivery and savings to boot.

Request A Bid

x3500 M5 Information

The new Lenovo® System x3500 M5 combines enormous performance and storage versatility. Models with up to 32 2.5-inch or 12 3.5-inch drives are available. Use a combination of fast-access 2.5-inch and low-cost-per-terabyte 3.5-inch drives in the same server to provide tiered storage. Install up to two Intel® Xeon® processors E5-2600 v3 series per server for a total of 36 cores. With up to two extra GPUs, you can speed up your graphics programs. The x3500 M5 helps your workloads soar with twice the memory, up to 131 percent more performance, and 50 percent more cores and cache than the previous generation.

IBM SYSTEM X SERVER MODELS:

Lenovo x3500 M5 Specifications

Form Factor/Height: Tower (5U rack-mountable)

Processor: Up to two 18-core Intel Xeon processors E5-2600 v3 seriesMemory: Up to 64GB of 2400MHz TruDDR4 ECC UDIMMs (4 slots)

Memory: Up to 1.5 TB with 64 GB* TruDDR4 Memory LRDIMMs

Cache: Up to 45 MB per processor

Disk Bays: Up to 32 2.5-inch hot-swap hard disk drives (HDDs) or solid-state drives (SSDs), or up to 12 3.5-inch hot-swap HDDs or 6 3.5-inch simple-swap HDDs, or a combination of up to 16 2.5-inch hot-swap HDDs/SSDs with up to 6 3.5-inch hot-swap HDDs

Expansion Slots: Up to seven PCIe 3.0 expansion slots; support for up to two 300 W GPUs

RAID Support: 12 Gbps hardware dual RAID adapters -0, -1, -10 with optional RAID-5, -50, -6, -60 upgrades

Power Supply: 1/2 hot-swap redundant 550 W/750 W/900 W, 80 PLUS Platinum or 750 W 80 PLUS Titanium

Network Interface: Quad-port Gigabit Ethernet and single-port IMM standard; optional 10 GbE PCIe adapters availableExpansion Slots: 2 PCIe 3.0 (one reserved for optional M1210 RAID controller)

Media Bays: DVD-ROM and optional tape drive
